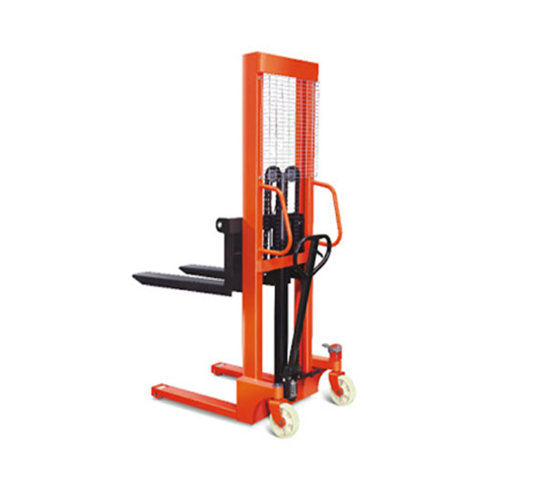

Hand Stacker : 1000Kg, 1500Kg, 2000Kg

Easy 3 position control handle- Raise, Lower and Neutral.
The stacker lifts the weights with a manual or pedal hydraulic device and loads weights with manual pull and push at a low position.
Manual stacker speed is controlled by using the pedal and hand lever.
Heavy duty iron saddle wheels gives high durability of hand stacker during up/dn movement
Its Reduce time lost to personnel injuries and help increase your facility's productivity.
It applies C frame with the more stable and secure lift with extra strength.
Structural made by heavy duty steel.

Model		DT-HS1016		DT-HS1030		DT-HS1516		DT-HS2016
Capacity	kg	1000				1500		2500
Load Center	mm	580
Minimum Fork Height	mm	85-90
Maximum Lifting Height	mm	1600		3000		1600
Mast Height	mm	2050		2150		2050
Fork Length	mm	900/1100
Fork Width	mm	150-160
Fork Span	mm	570/680
Load Roller	mm	80 x 70
Steering Wheel	mm	180 x 50
Mast Type	Nos.	single		Double		single		single
Structure	Ms Fab.	Mild Steel
Wheel Type	Std	PU /Nylon
Overall Dimensions	mm	1450(L) x 750(W) x 1950(H)
