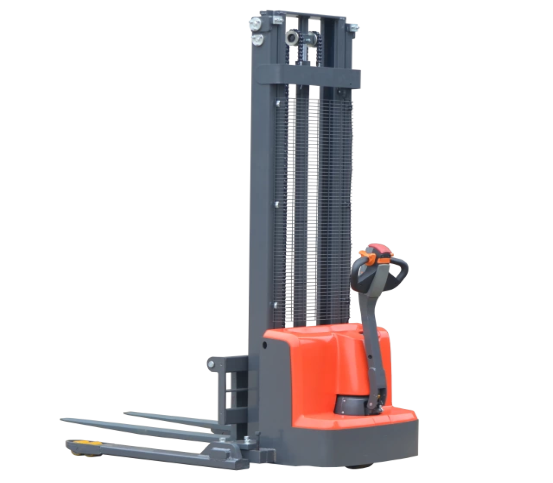

Full Electric Stacker

Curtis AC controller and voltage, step less speed regulation
The AC control system and ruggedness of the drive train provides smooth direction changes and allows you to change direction instantaneously
Proportional control valve enables the operator to align the forks smoothly and accurately with the pallet
Mechanical controlled steering with high turning accuracy.
Electromagnetic brake system.
Vertical AC drive motor and vertical transmission gearbox

Model		DT-FES1030		DT-FES1045
Capacity	kg	1000
Minimum Fork Height	mm	90
Max. Fork Height	mm	3000		4500
Load Center	mm	600
Fork Length	mm	1150
Fork Width	mm	150-160
Fork Span	mm	540
Motor Drive	kw/V	1.2kw/24V
Motor Lifting	kw/V	2.2kw/24V
Travelling Speed, Laden / Unladen	Km/h	4.0/5.5
Lifting Spees, Laden/Unladen	mm/s	95/122
Lowering Speed, Laden/Unladen	mm/s	110/60
Turning Radius	mm	1850
Front Roller	mm	78 x 70
Rear Roller	mm	150 x 75
Driver Wheel	mm	250 x 80
Battery	Ah/v	250 x 80
Battery Charger		20A/24V
Weight	kg	665		850
