Hydraulic Goods Lift

This cargo lift droved by the electric and hydraulic system, lifting up and down along the guide rail.
Equipped single side or double sides hydraulic cylinder to keep the machinery works smooth and steady.
Installed in the pit or the ground floor.
Control panels both on ground and top floor.
Use high strength H Steel materials as guide rail structure.
1 or 2 pcs high strength hydraulic cylinder.
Manual down valve on the machine.
Emergency stop: lifting and lowering process can be stopped immediately.

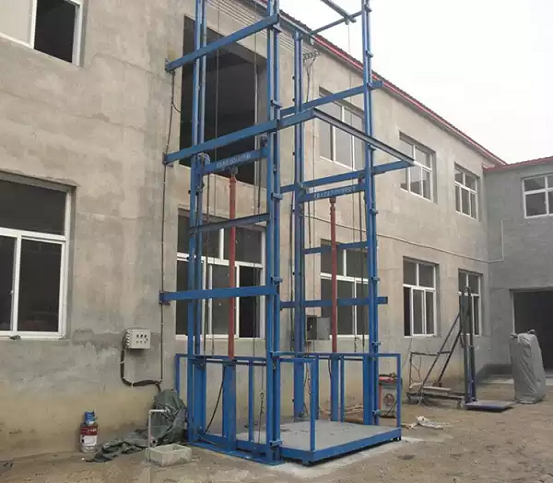

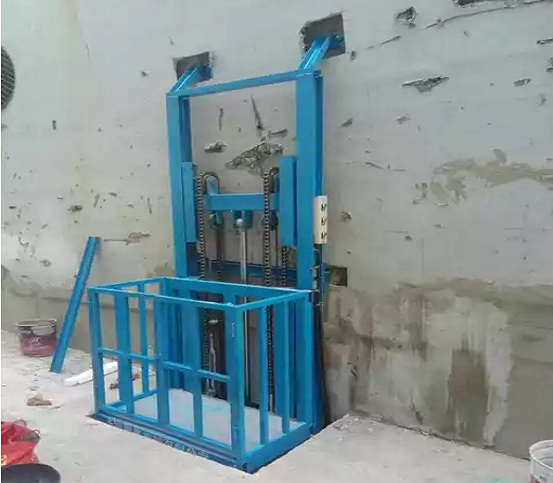

Model		DT-HGL1		DT-HGL2
Capacity	kg	1000		1000-1500
Platform Size	(W x L)mm	1000 x 1000		1500 x 1500 / 1800 x 1800 / 1800 x 2000
Height	mm	3300-9000		3300-10000
Pit Size	mm	70-100
Controls	panels	1-4
Mast	Std	Single		Double
Supply	Volateg -AC	3 phase
