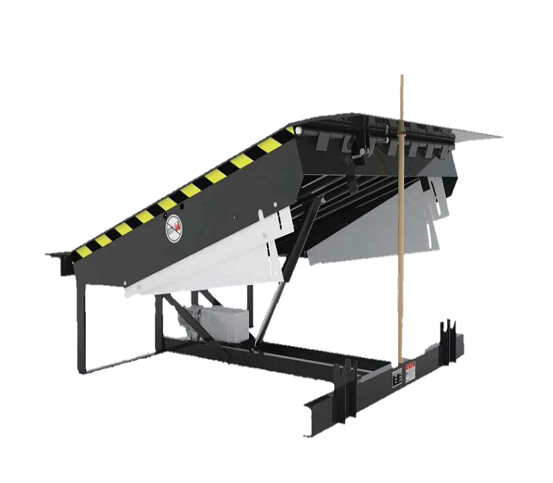

Dock Leveler

Fixed Dock Ramp have Full hydraulic drive, easy to operate and reliable.
Lip and the platform with the entire length of the shaft connection, high strength, good reliability.
The use of imported seals to ensure that the hydraulic system has excellent sealing performance.
Import the whole modular hydraulic station, good sealing, long service life.
Using non-slip pattern steel plate, so that the platform has a good anti-skid performance.
Both sides of the anti-running skirt skirt, to prevent the toes into the platform caused by accidental injury.
There is a support bar that safeguards the maintenance personnel to enter the safety of the boarding bridge.

Model		DT-DLL-5		DT-DLL-9		DT-DLL-15
Capacity	kg	5000		9000		15000
Platform Size (L xB)	mm	2600 x 2000		2700 x 2100		2900 x 2200
Lip Length	mm	350 - 400
Lip Sheet Thickness	mm	12
Working Range Above & Below	mm	310-275
Hydraulic Cylinder	nos.	Single/Double
Top Sheet	type	Chequered Plate
Supply	Voltage /Hz	3 phase/ 50Hz
