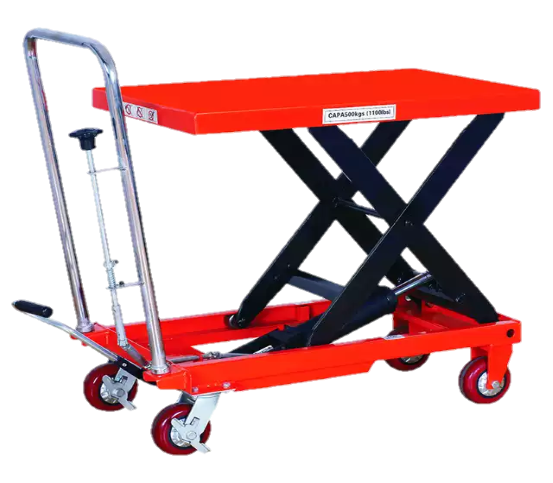

Scissor Lift Tables

Scissor table for use as a feeding table on assembly line.
Easy action foot operated hydraulic lift for raising table top to desired level.
Over load by-pass value protects operator and pump and excellent hydraulic pump unit for low maintenance.
Heavy duty steel construction with epoxy powder coated finish to give greaterant-corrosion resistance.
Polyurethane wheels fitted as standard complete with break.
Its Reduce time lost to personnel injuries and help increase your facility's productivity.

Model		DT-MLT 35S		DT-MLT 25D		DT-MLT 50D
Capacity	kg	350		250		500
Minimum Platform Height	mm/inch	300/12		400/16
Max. Platform Height	mm/inch	900/35		1450/56		1500/60
Platform Size	mm	900/35 x 650/25				--
Foot pedal cycles to reach max.height	nos.	25/28				--
Wheels (Heavy duty PU wheels)	nos.	4 Nos. with double ball bearing				--
Hydraulic Unit		A foot operated hyd. pump				--
Structure	Type	Heavy duty M.S. Sheet
Weight	kg	75		96		120
