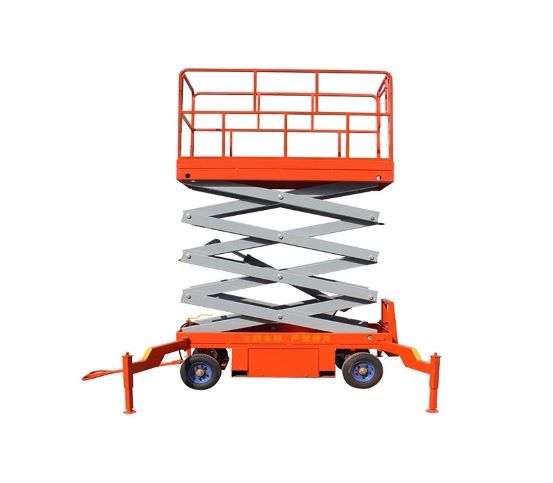

Multi Scissor Lift Table

1. Scissor table for use as a feeding table on assembly line.
2. Structural heavy duty steel construction and power coated.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Over load by-pass value protects operator and pump and excellent hydraulic pump unit for low maintenance.
5. High lift portable scissor table with 300 and 350 kg Capacity
6. Portable Scissor Lift Tables are perfect for all industries, warehouse, or any industrial arena where height is needed.
7. Its Reduce time lost to personnel injuries and help increase your facility's productivity.

Model		DT-MSL3030		DT-MSL4030		DT-MSL6035		DT-MSL9035
Capacity	kg	300				350
Max.Platform Height	mm	3000		4000		6000		9000
Min.Platform Height	mm	650		750		1100		1360
Platform Size (LxWxH)	mm	1150 x 600				1500 x 900		2200 x 1000
Elevating Time	sec	35		55		65		75
Lifting Motor	V/kw	12/0.8				24/1.6		24/2.2
Overall Height	mm	1720		1800		950		1250
