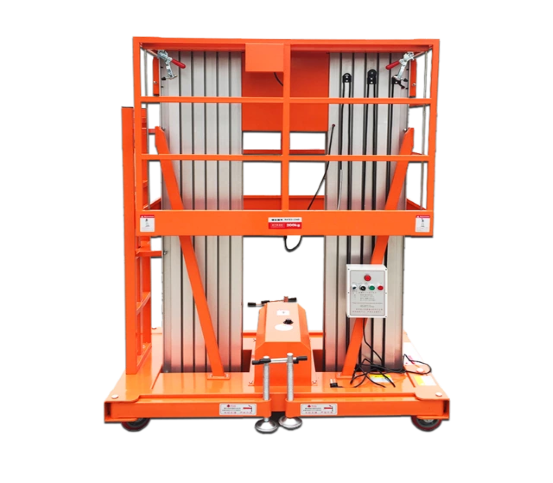

Aerial Work Paltform : Multi Mast

1. For higher capacities, greater lifting height or where the application requires a larger platform size and load capacity, Multi Mast Aerial Work Platforms are available. Dual Mast Platforms are available up to a working height of 13.7 mtrs and maximum platform height of 12 mtrs. Triple mast & Four mast platforms are available up to a maximum platform height of 14 mtrs.
2. All Multi Mast Work Platforms have foldable railings, which can be folded for compact storage and easy maneuverability through low doorframes.
3. Extendable Platform An extendable platform is available on request and can be provided for use in inaccessible places, with extra reach. This is available for double mast platform only.

Model		DT-AWP 8D		DT-AWP 9D		DT-AWP 10D		DT-AWP 12D		DT-AWP 14D
Capacity	kg	200		200		200		160		150
Maximum Platform Height	mtr.	8		9		10		12		14
Maximum Working Height	mtr.	9.7		10.7		11.7		13.7		15.7
Platform Dimension	mm	1360L x 600W						1560L x 800W
Power Supply	AC/DC	AC 200V or DC 12V
Stored Dimension L0 x W0 x H0	mm	1480 x 900 x 2060								1700 x 1130 x 2480
Weight	kg	385		430		490		560		---
