Easy 3 piston control handle- Raise, Lower and Neutral..
Ergonomic power coated handle, which is comfortable and convinient to operate.
Fork lowering speed is controllable, opertaed by hand control as well as foot pedal.
Ergonomic power coated handle, which is comfortable and convinient to operate.
Fork lowering speed is controllable, opertaed by hand control as well as foot pedal.
Model |
DT-HPT LPS |
DT-HPT LPL |
|||||
Capacity |
kg |
1500 |
1500 |
||||

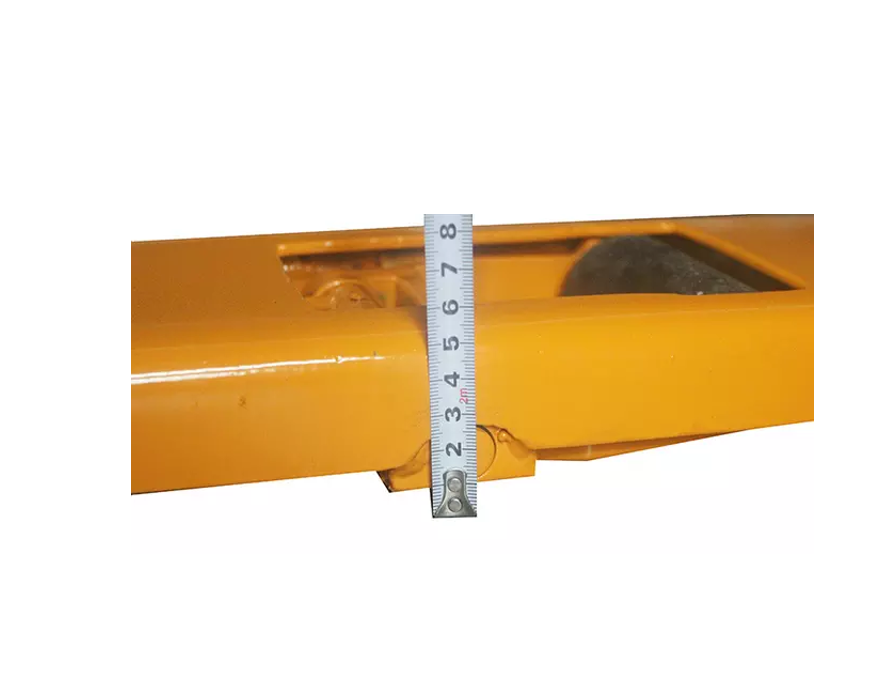

Lowest Height |
mm |
51 |
51 |
||||
Max. Fork Height |
mm |
165 |
165 |
||||
Maximum Lift Height |
mm |
114 |
114 |
||||
Fork Span |
mm |
540 |
685 |
||||
Fork Length |
mm |
1150 |
1220 |
||||
Fork Width |
mm |
160 x 37 |
|||||

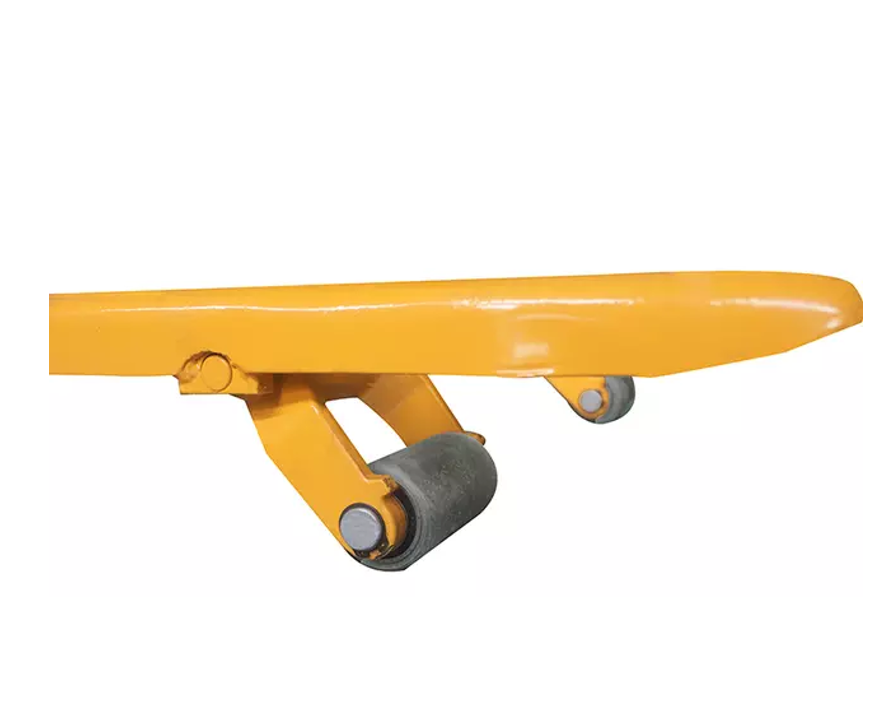

Load Roller |
mm |
50 x 70 |
|||||
Steering Wheel |
mm |
180 x 50 |
|||||
Structure |
Ms Fab. |
Mild Steel |
|||||
Wheel Type |
Std |
PU /Nylon /CI |
-

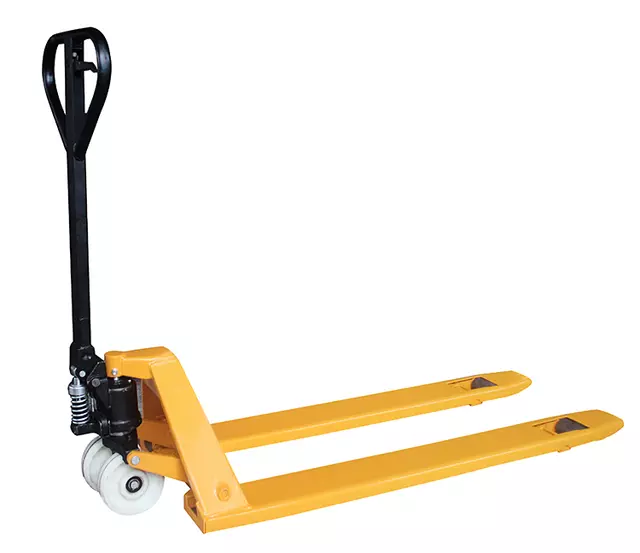

Pallet Truck
-
